COPP_PC_with_display as downloader

How to setup COPP_PC_with_display as downloader

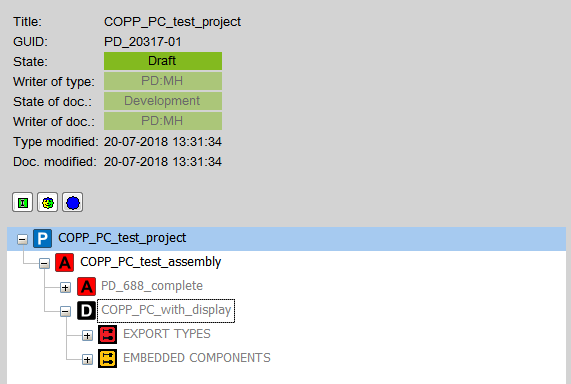

First step is to add the COPP_PC_with_display to your project.

After this step is done, you'll need to fill in the serial number of the COPP_PC_with_display. If using the "internal" COPP_PC_with_display, the default serial number will always be  "20327971".

Now you'll need to ensure that you have enabled the COPP_PC_with_display to be "project downloader".

This can be done by right-clicking the device, in this case the COPP_PC_with_display.

You'll also have to remember to connect the devices which you want your downloader pc to download to, in our case the PD_688_complete -> PD 688 device, through a suitable "NET".  We use the IP NET in this example.

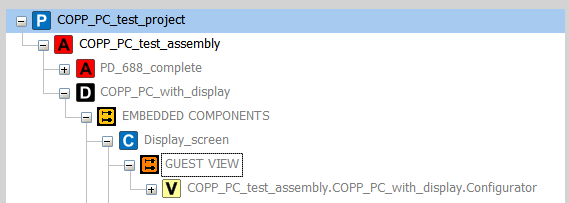

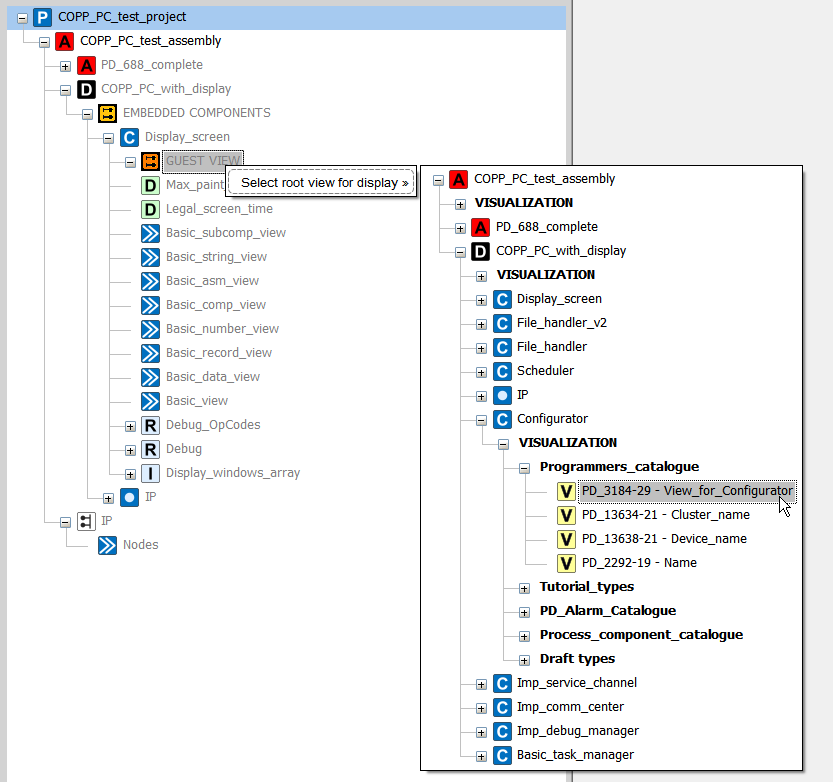

Now we need to add the configurator view, "View_for_Configurator", to the COPP_PC_with_display's guest view. This view is loacted in the COPP_PC_with_display's: Embedded components -> Display_screen.

Note: If your not able to see any visualisations its probably becasue you haven't added any catalogues, views are only accessable though these, and therefore can't see any. Take a look here -> Catalogue guide.


You'll now be ready to use the COPP_PC_with_display as your project downloader.
